Interface: Client STPI - SecureTablePay

STPI Client and certificate : http://versions.velocehq.com/soft

** Please make sure the latest Java is installed:  https://www.java.com/fr/download/ **



1.       Certificate Installation for the STPI service

a.       Download the certificate file
www.velocehq.com/soft/tmc_certificate.zip

b.       Un-zip the tmc_certificate.zip file

c.       Open the Windows start menu and enter mmc and open mmc.exe



d.       Click on File / Add-Remove Snap-in

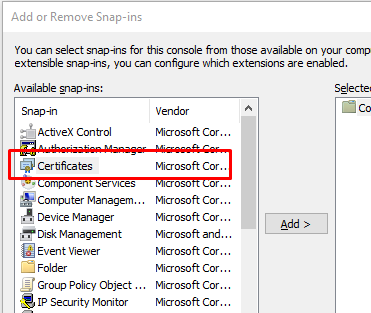

e.       Select Certificates and click on Add

f.        Select Computer account and press Next

                          Click on Finish at the next page



g.     At the left side click on Certificates / Personal / Certificates

                         Right-click, Select All Tasks / Import…

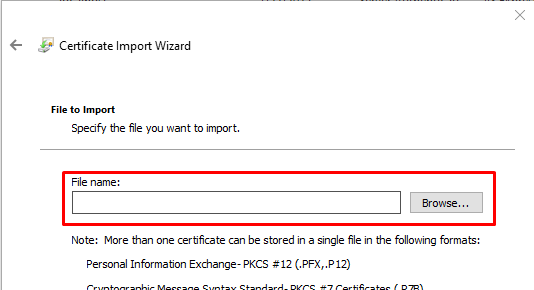

h.       At the first step press Next, and then browse the certificate file you unzipped



i.        Make sure to change the files type at the bottom right to All Files (*.*) to see the certificate file

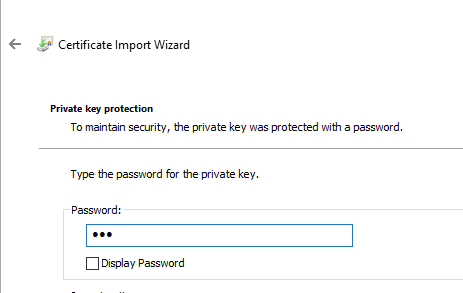

j.         Input the password : tmc and Next



k.       Press on Next, Next and Finish to complete the installation

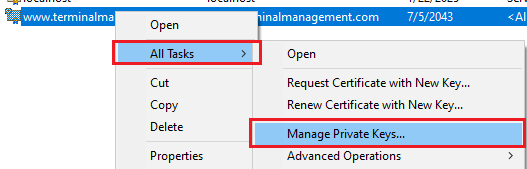

l.         After the certificate installation, right click on it, All Tasks / Manage Private Keys…



m.     Add the user ‘Everyone’ with Full control



1.      STPI Client installation in ‘Service’ mode

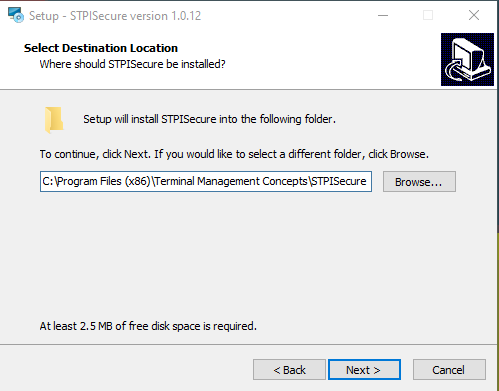

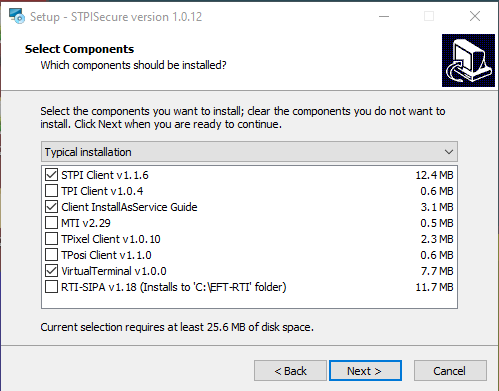

Run the STPIClient.exe and follow the steps below:



*****************************************************************

Before you continue, make sure to install the licence file (Lic.txt) in the STPI folder (C:\Program Files (x86)\Terminal Management Concepts\STPISecure\STPIClient\)
If you install the licence file after the install, you’ll need to restart the StpiClient service

b.       After the installation, we need to install the service. Go to C:\Program Files (x86)\Terminal Management Concepts\STPISecure\Install_As_Service\STPI InstallAsService

c.       Select win32 if you have a 32 bits computer or win64 if 64 bits

d.     Run ‘As Administrator’ the InstallSTPIClientService64.bat (if win64) and InstallSTPIClientService32.bat (if win32)

e.    In the NSSM service installer window, browse the run.bat file under: (C:\Program Files (x86)\Terminal Management Concepts\STPISecure\STPIClient\run.bat)

f.        When the installation is completed, run the file StartSTPIClientService64or StartSTPIClientService32

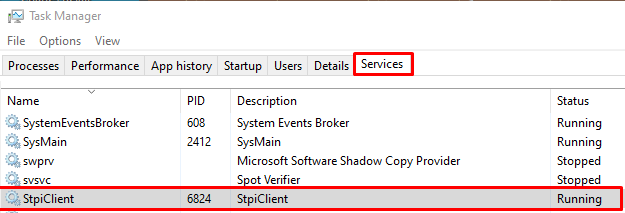

g.      At this point, the StpiClient service should be running. You can verify using the Task Manager, under Services
