Gift PayFacto User Guide

This guide describes the features of the Gift PayFacto powered by DataCandy application on your Android-powered payment terminal and explains how to use them when processing gift card transactions for your business.

About Gift Cards

Gift cards are prepaid debit card that contain a specific amount of money for use by customers to pay for products or services. When activated, gift cards loaded with funds for future use. When using a gift card for a purchase, the card balance reduces by the amount of the transaction.

Some gift cards allow you to add funds (open loop), while others have a finite amount that cannot be reloaded (closed loop). Depending on your business, you can offer gift cards for use in specific locations or at all affiliated brands.

Gift cards can pay for products or services, in whole or in part, depending on the transaction and the funds balance remaining on the card. Gift cards cannot be used without prior activation.

Gift Card Transactions

There are 7 transactions available when you accept gift cards. Each transaction type applies to a specific situation as explained below:

1. Redemption: Uses a portion of the remaining balance on the card as payment for a product or service.

2. Empty Card: A redemption used to clear the remaining balance on the card. Only applicable to card balances below $5 ($4.99 or less).

3. Balance: Informational only; queries the DataCandy server for the remaining card balance.

4. Increment: Adds funds to an active card.

5. Complete Cancel: Reverses the full amount from a previous transaction and adds the funds back to the card’s balance. Requires the authorization number from DataCandy printed on the original receipt.

6. Partial Cancel: Reverses a partial amount from a previous transaction and adds the funds back to the card’s balance. Requires the authorization number from DataCandy printed on the original receipt.

7. Activation: Activates and adds funds to a new card.


Process a Sale with a Gift Card (Redemption)

Purchases using gift cards are referred to as redemptions. A redemption is like any other sale, except instead of using a credit or debit card, the customer presents a gift card. The sale amount is deducted from the card’s balance and the new balance is printed on the customer receipt. Redeeming funds from a gift card to pay for a purchase is a two-step process:

1. The sale transaction is processed on the Point of Sale (POS) system.

2. The funds redeemed from the card’s current balance.


To perform a redemption:

Process the sale transaction on your POS, indicating that the payment method is a gift card.
Touch the Number pad to enter the redemption amount.
Touch Redemption.
Swipe the customer’s gift card. You can also touch GIFT CARD MANUAL ENTRY, enter the Admin password, and then enter the card number and touch OK.
The server deducts the amount from the card balance, and the terminal prints a transaction receipt. Tear off the receipt and hand it to the customer with their card. Touch OK to print a second receipt, or touch CANCEL.

Empty the Balance of a Gift Card

If a customer has a balance of $4.99 or less on their gift card, they can empty the card balance for a sale. The purchase cannot be more than the available card balance. After the balance is reduced to $0.00, the gift card becomes inactive. Emptying the balance of a card is a two-step process:

1. The sale transaction is processed on the Point of Sale (POS) system.

2. The funds redeemed from the card’s remaining balance.


To empty a card balance:

Process the sale transaction on your POS, indicating that the payment method is a gift card.
Touch the Action button on the main screen.
Touch Transactions.

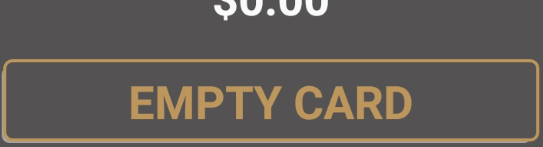

Touch Empty Card.

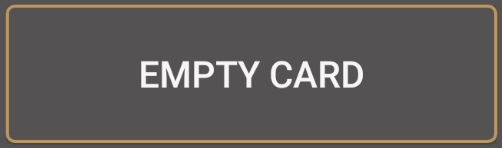

Touch Empty Card.
Swipe the customer’s gift card. You can also touch GIFT CARD MANUAL ENTRY, enter the Admin password, and then enter the card number and touch OK.
The server empties the card balance, and the terminal prints a transaction receipt. Tear off the receipt and hand it to the customer. Touch OK to print a second receipt, or touch CANCEL.

Check the Balance of a Gift Card

Because gift cards are loaded with a set amount of money, customers may not know their balance prior to paying for a product or service. Checking the available funds on a gift card does not affect the balance.

To check the balance on a card:

Touch the Action button on the main screen.
Touch Transactions.

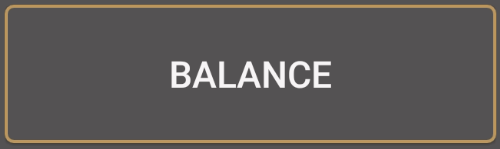

Touch Balance.
Swipe the customer’s gift card. You can also touch GIFT CARD MANUAL ENTRY, enter the Admin password, and then enter the card number and touch OK.
The server verifies the card balance, and the terminal prints a transaction receipt showing the current balance. Tear off the receipt and hand it to the customer with their card. Touch OK to print a second receipt, or touch CANCEL.

Add Funds to a Gift Card (Increment)

If a customer has a reloadable gift card, they can add funds to their balance whenever they want. Adding funds is a two-step process:

1. Customer pays for the funds they want to add using cash, credit, or debit.

2. The funds are added to the card’s existing balance.


To add funds to a card:

Using your POS, process the payment for the funds that will be added to the card.
Touch the Action button on the main screen.
Touch Transactions.

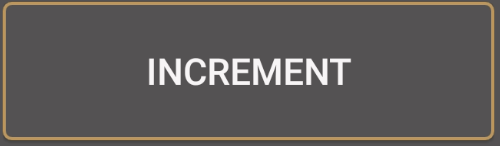

Touch Increment.
Touch the Number pad to enter the funds amount to add to the card balance.

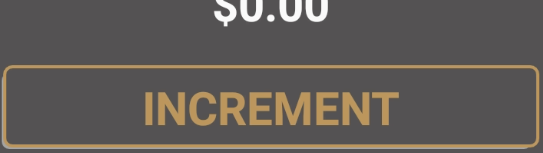

Touch Increment.  NOTE: If you are using the terminal in standalone mode (no POS), you may need to enter the administrator password; if required, enter the Admin password and touch OK.
Swipe the customer’s gift card. You can also touch GIFT CARD MANUAL ENTRY, enter the Admin password, and then enter the card number and touch OK.
The server adds the increment amount to the card balance; the terminal prints a transaction receipt showing the new balance. Tear off the receipt and hand it to the customer with their card. Touch OK to print a second receipt, or touch CANCEL.

Reverse the Complete Amount of a Previous Redemption

Gift cards do not allow for refunds in the same way as credit or debit cards. If a customer wants to return a product redeemed (purchased) with a gift card, the transaction must be reversed to allow the funds to be returned to the card balance. Reversing the complete amount is a two-step process:

1. The transaction is reversed on the Point of Sale (POS) system.

2. The full amount of the redemption is reversed to return the funds to the card’s balance.


To reverse the complete amount of a previous redemption:

Touch the Action button on the main screen.
Touch Transactions.

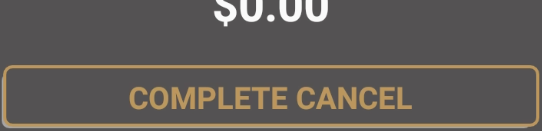

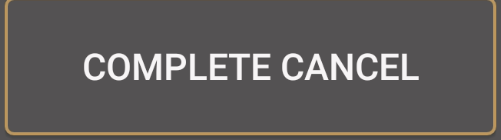

Touch Complete Cancel.
Touch Complete Cancel.

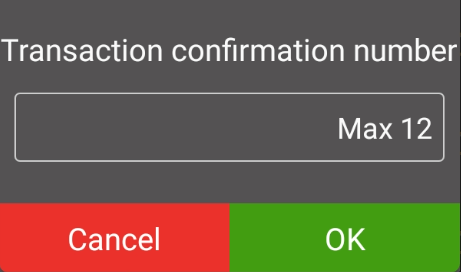

Touch the Number pad to enter the transaction confirmation number that appears on the original receipt and touch OK.
Swipe the customer’s gift card. You can also touch GIFT CARD MANUAL ENTRY, enter the Admin password, and then enter the card number and touch OK.
The server reverses the previous redemption and increments the total to the card balance; the terminal prints a transaction receipt showing the updated balance. Tear off the receipt and hand it to the customer with their card. Touch OK to print a second receipt, or touch CANCEL.

Reverse a Portion of a Previous Redemption

While the Complete Reverse procedure reverses an entire transaction, you can reverse a partial amount of a transaction. Use this transaction if your customer used a gift card to purchase more than one product or service in a single transaction. Reversing a partial amount is a two-step process:

1. The portion of the transaction is reversed on the Point of Sale (POS) system.

2. The partial amount of the redemption is reversed to return the funds to the card’s balance.


Using the Gift application on the terminal, touch the Action button on the main screen.
Touch Transactions.

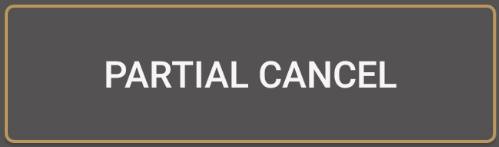

Touch Partial Cancel.
Touch the Number pad to enter the amount of the transaction to reverse.

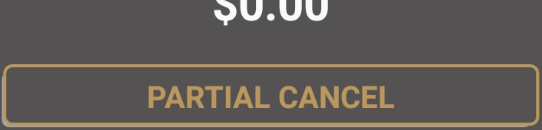

Touch Partial Cancel.
Touch the Number pad to enter the transaction confirmation number that appears on the original receipt and touch OK.
Swipe the customer’s gift card. You can also touch GIFT CARD MANUAL ENTRY, enter the Admin password, and then enter the card number and touch OK.
The server reverses the amount of the previous redemption and increments the reversed amount to the card balance; the terminal prints a transaction receipt showing the updated balance. Tear off the receipt and hand it to the customer with their card. Touch OK to print a second receipt, or touch CANCEL.

Activate a New Card

Gift cards have no value and cannot be redeemed prior to activation. When you activate a card, you are adding funds to the card balance while the card’s unique identification number is registered as valid on the DataCandy server. Cards may have a preset value or allow the purchaser to add funds in the amount of their choosing; the procedure is the same for both. Activating a card is a two-step process:

1. Customer pays for the card’s preset value or the amount they wish to load onto the card using cash, credit, or debit.

2. The card is registered as active on the DataCandy server and the funds are added to the card’s balance.


Using your POS, process the sale for the card’s value or the funds to add to the card.
Touch the Action button on the main screen.
Touch Transactions.
Touch Activation.
Touch the Number pad to enter the amount of funds to increment to the new card’s balance.

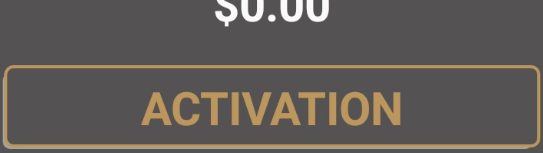

Touch Activation.  NOTE: If you are using the terminal in standalone mode (no POS), you may need to enter the administrator password; if required, enter the Admin password and touch OK.
Swipe the gift card. You can also touch GIFT CARD MANUAL ENTRY, enter the Admin password, and then enter the card number and touch OK.
The server activates the card and increments the balance; the terminal prints a transaction receipt showing the card balance. Tear off the receipt and hand it to the customer with the card. Touch OK to print a second receipt, or touch CANCEL.

Application Configuration and Terminal Management

The Gift PayFacto application can run independently of the payment application running on your terminal or POS. If you are using Gift PayFacto as a standalone application, there are application and terminal settings you may want to configure to meet your business requirements.

If you use the PayFacto Payment application, the Gift PayFacto application inherits the common configuration settings, including theme, display language, and Administrator password.

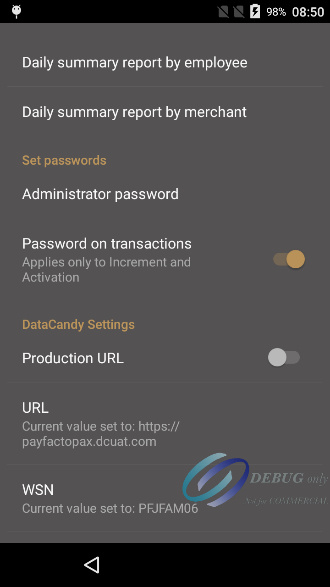

Understanding Passwords

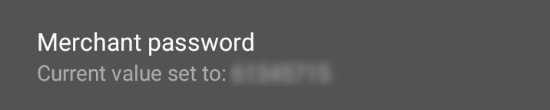

The Gift PayFacto application uses an Administrator password to prevent unauthorized access to certain functions. As a fraud prevention method, you can also require the Administrator password when a transaction requires the manual entry of the gift card number rather than swiping the card.

Additionally, if you activate the Enable waiters function, each waiter will need to enter their unique password before they can perform a transaction. Refer to the Waiter Management section for more information about the Enable waiters function.

Incorrect Password Entries

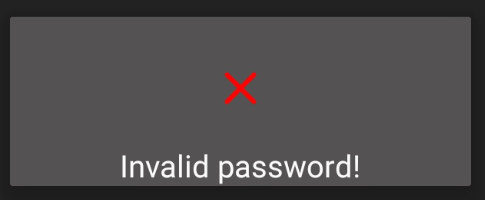

If you enter a password incorrectly, the terminal displays an Access refused error message. The Password field re-appears, prompting you for the required password with a number in parenthesis, which represents the number of tries remaining before the terminal locks out the user profile. An operator has 5 attempts to enter the password correctly; the counter resets after the password is entered correctly. If you incorrectly enter a password 5 times, the terminal locks and requires that you contact Technical Support to obtain a Superuser password.

Forgotten Password

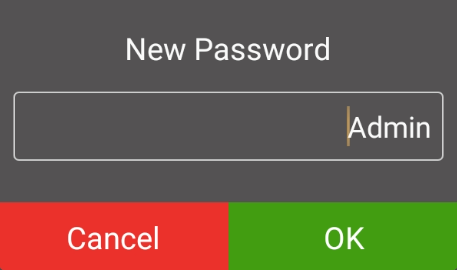

If you have forgotten the Administrator password, the reset procedure requires that you contact Technical Support to obtain a Superuser password. To obtain support 24/7, contact PayFacto at 1-888-800-6622

Invoice Numbering

For bookkeeping purposes, invoices are numbered. The numbering can be done manually or automatically. By default, the terminal numbers the invoices automatically, in sequence. If you disable automatic invoice numbering, the terminal prompts the operator to manually input an invoice number (maximum of 12 numeric characters); you cannot process a redemption transaction without an invoice number.

To enable/disable automatic invoice numbering:

Touch the Action button on the main screen.
Touch Settings.

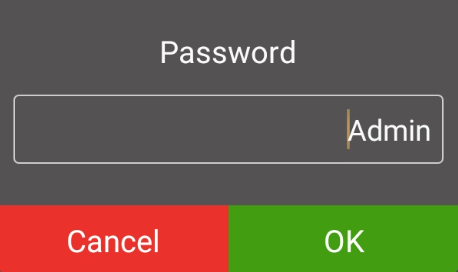

Enter the Admin password and touch OK.

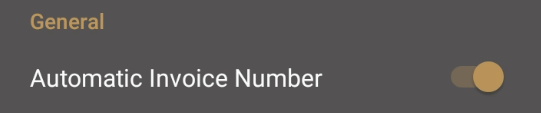

In the General section, toggle Automatic Invoice Number to On to enable automatic invoice numbering or toggle to Off to enter the invoice number manually for every redemption transaction.
Touch the Exit icon to return to the main screen.

Require Password for Manual Gift Card Entry

The magnetic stripe on gift cards can be damaged and become unreadable by the terminal. In such situations, the card number can be entered manually using the terminal’s number pad. Manual entry of card numbers is also susceptible to fraud, so it is strongly recommended to require the Administrator password prior to manually entering a card number.

To enable/disable password protection for manual card entry:

Touch the Action button on the main screen.
Touch Settings.
Enter the Admin password and touch OK.
In the General section, touch the Manual entry password toggle button to enable or disable password protection for manual card number entry.
Touch the Exit icon to return to the main screen.

Waiter Management

Gift cards are an easy method for restaurants to encourage guests to return. If your business uses wait staff that access the payment terminal, you can require each server to identify themselves and enter a password before completing a transaction; this ensures that no unauthorized individuals can use the terminal.

Enable Waiters

By default, any number of servers can operate the terminal, but you can require individual servers to identify themselves. When enabled, the terminal requires that individual servers enter their identification number and password prior to completing a transaction.

To enable/disable waiters:

Touch the Action button on the main screen.
Touch Settings.
Enter the Admin password and touch OK.
In the General section, touch, touch the Enable waiters toggle button to enable or disable server identification.
Touch the Exit icon to return to the main screen.

Add a Waiter

When you enable the use of waiters, you need to add at least one waiter to the terminal. If you enable waiters on the terminal, but don’t configure at least one waiter, the terminal will not allow you to process a transaction.

Touch the Action button on the main screen.
Touch Settings.
Enter the Admin password and touch OK.

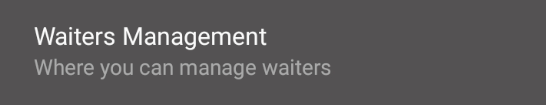

In the General section, touch Waiters Management.
Tap the Add New Waiter button.

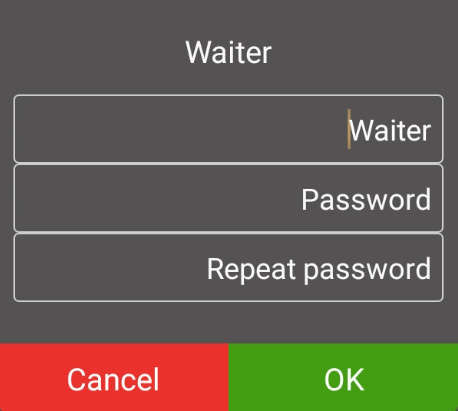

Enter the waiter’s unique identification number in the Waiter field; numbers can range from 1 to 999.
Touch the Password field and enter the waiter’s password. NOTE: Passwords are numeric (numbers only) and between 4 and 6 characters in length.
Touch the Repeat password field and re-enter the password to confirm.
Touch OK. The new clerk ID appears in a list.
Repeat steps 5 to 9 for each additional waiter you want to create.
Touch the Exit icon two times to return to the main screen.

Change a Waiter’s Password

It is simple to change a waiter’s password. You may need to change a password if an employee is assigned another employee’s number, or you may want to change passwords on a recurring basis for terminal security.

To change a waiter’s password:

Touch the Action button on the main screen.
Touch Settings.
Enter the Admin password and touch OK.
In the General section, touch Waiters Management.
Locate the waiter whose password you want to change and touch the Edit icon.

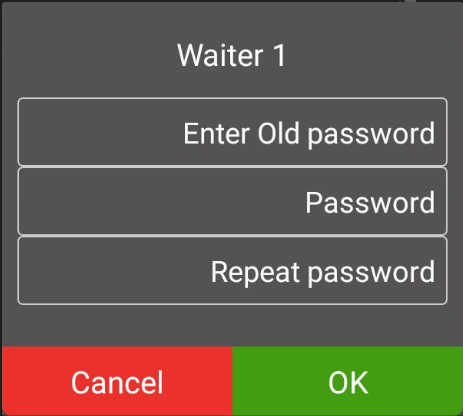

Enter the waiter’s current password in the Enter Old password field.
Touch the Password field and enter a new password that is 4 to 6 characters in length.
Touch the Repeat password field and re-enter the new password to confirm.

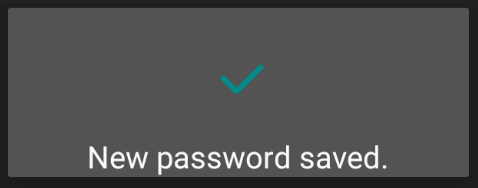

Touch OK.
Touch the Exit icon two times to return to the main screen.

Deleting Waiters

You may want to remove the requirement for waiters to identify themselves. There are 3 ways to remove waiters from the terminal:

1. Disable waiter identification

2. Delete individual waiters

3. Delete all waiters


If you choose to disable waiter identification, any waiters you have previously configured (including their passwords) will remain stored on the terminal. The procedure to disable waiter identification is the same as the Enable Waiters procedure, but you toggle Enable waiters to Off.

Delete an Individual Waiter

Deleting a single waiter only removes that clerk and the associated password from the terminal. All other waiters configured on the terminal remain operational.

To delete an individual waiter:

Touch the Action button on the main screen.
Touch Settings.
Enter the Admin password and touch OK.
In the General section, touch Waiters Management.
Locate the waiter you want to delete and tap the Delete icon.
Touch OK to confirm you want to delete the waiter.
Repeat steps 5 and 6 for each individual waiter you want to remove.
Touch the Exit icon two times to return to the main screen.

Delete All Waiters

If required, you can delete all existing waiters on the terminal at one time.

IMPORTANT: IF you delete all waiters from the terminal, you must either disable waiter identification or add at least one new waiter before you can process any gift card transactions. Refer to Disable Waiter Identification or Add a Waiter for the appropriate procedure.

To delete all waiters on the terminal:

Touch the Action button on the main screen.
Touch Settings.
Enter the Admin password and touch OK.
In the General section, touch Waiters Management.
Tap the Delete All Waiter button.
Touch OK to confirm you want to delete all the waiters from the terminal.
Touch the Exit icon two times to return to the main screen.

Configuring Printer Options

If your terminal has a built-in printer, or connects to an external printer, there are several printing options you can enable in addition to the standard receipts that support the different gift card transactions.

Paired Devices

The B60 Bluetooth Printer section and the Paired devices function are not currently enabled.

Configuring Transaction Printing Options

By default, the terminal prints 2 receipts for all gift card transactions, with the Merchant copy printing first. You can adjust these settings to suit your business needs. The available transaction printing options are:

1. Enabling or disabling the printing of receipts

2. Number of copies

3. Which copy does the terminal print first

4. Color depth of the printout


Touch the Action button on the main screen.
Touch Settings.
Enter the Admin password and touch OK.
In the General section, touch Printer Options.

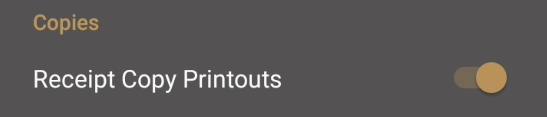

In the Copies section, toggle Receipt Copy Printouts to On to enable receipt printing or Off to disable printing.

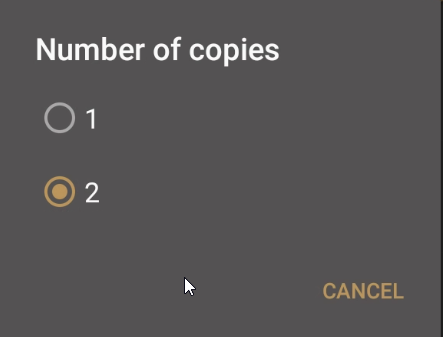

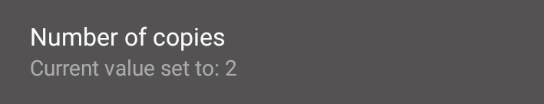

Touch Number of copies to set the number or receipts that print; touch 1 or 2.

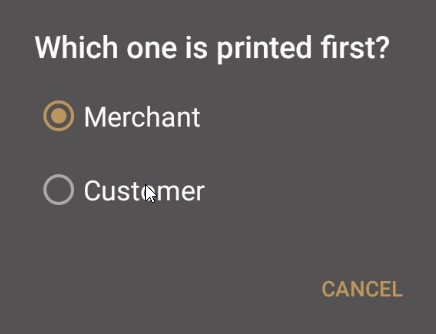

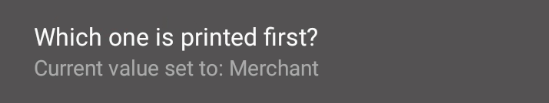

Touch Which one is printed first to select which receipt prints first; touch Merchant or Customer. Hint: If you set 1 as the number of copies in step 6, you should select Customer in this step.

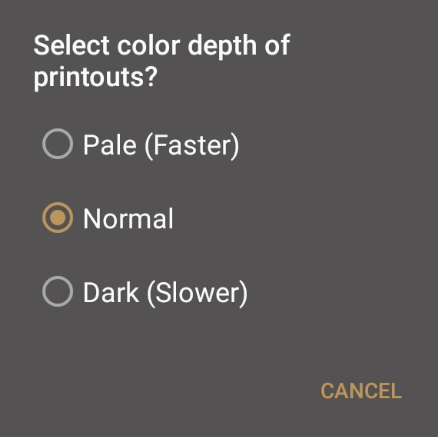

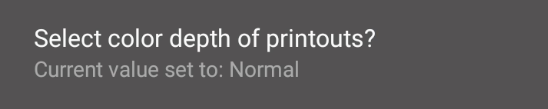

Touch Select color depth of printouts to set the color density of the receipts. The color depth and its associated printing speed affect the terminal’s battery life. The options are: Pale: Lightest printout, prints faster and uses less battery. Normal: Default printout setting, average printing speed and battery use. Dark: Darkest printing, prints slower and uses more battery.
Touch the Exit icon twice to return to the main screen.

Additional Printing Options

In addition to printing receipts for completed gift card transactions, you can configure the following terminal printer settings:

1. Print declined transactions: Prints the transaction receipt when the transaction is declined

2. Print reverse on declined: Prints the transaction result in white on a dark background for declined transactions

3. Print ECR mode transactions: Uses the terminal’s printer for payment transactions processed on a separate device.

4. Print second copy on ECR mode: Uses the terminal’s printer for the second copy of a transaction processed on a separate device.


Touch the Action button on the main screen.
Touch Settings.
Enter the Admin password and touch OK.
In the General section, touch Printer Options.

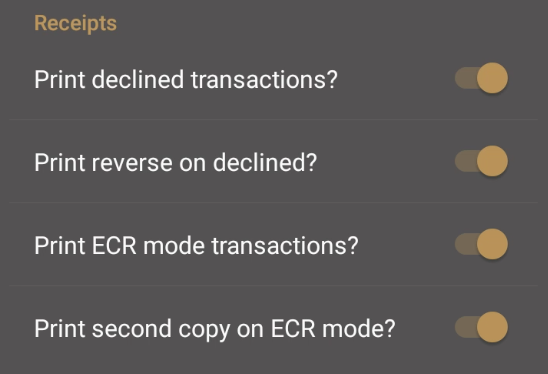

In the Receipts section, touch the toggle button to enable or disable printing for the declined end ECR mode printing options.
Touch the Exit icon twice to return to the main screen.

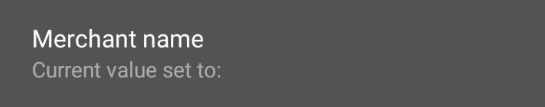

Add a Personalized Receipt Header

You can add your business information at the top of every printed receipt. Your business and contact information can contain up to 4 lines with 44 characters (including spaces) per line. If you also use the PayFacto Pay application, the header values are inherited from the Pay application. The Pay application receives the header when you perform a Host Download (refer to the PayFacto User Guide - Payment Application for more information). If you do not use the PayFacto payment application, use this procedure to configure the information that appears in the receipt header.

To add a personalized message to your printed receipts:

Touch the Action button on the main screen.
Touch Settings.
Enter the Admin password and touch OK.
In the General section, touch Printer Options.

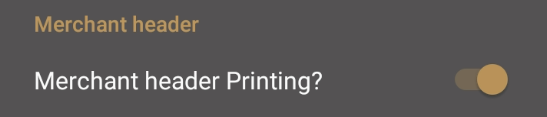

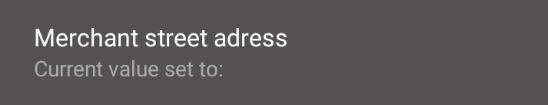

Scroll down to the Merchant header section, toggle Merchant header Printing? to On.
Touch Merchant name and enter the text for the merchant name in the text field that appears and touch OK.
Touch Merchant street address and enter the text for the street address for your business in the text field that appears and touch OK.
Touch Merchant city province and enter the text for the city and province in the text field that appears and touch OK.

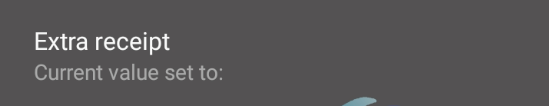

Touch Extra receipt and enter any additional information (for example, the phone number) in the text field that appears and touch OK.
Touch the Exit icon two times to return to the main screen.

Add a Personalized Receipt Footer

You can add a personalized message at the bottom of every printed receipt. Your message can contain up to 4 lines with 44 characters (including spaces) per line.

To a personalized message to your printed receipts:

Touch the Action button on the main screen.
Touch Settings.
Enter the Admin password and touch OK.
In the General section, touch Printer Options.

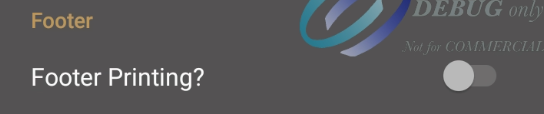

Scroll down to the Footer section, toggle Footer Printing? to On.
Touch Footer Line 1 and enter the text for the first line of the message in the text field that appears and touch OK.
If necessary, repeat step 6 for Footer Line 2, Footer Line 3, and Footer Line 4 as required
Touch the Exit icon two times to return to the main screen.

Edit the Personalized Header or Footer

If you notice an error in your personalized header or footer, or you want to change some text in the message, you can easily edit your message. Repeat either the Add a Personalized Receipt Header or the Add a Personalized Receipt Footer procedure and adjust the text on the line(s) you want to modify.

Delete Personalized Messages

You can easily remove your existing header or footer to enter a new one, or to leave the receipts blank.

To a delete the receipt header:

Touch the Action button on the main screen.
Touch Settings.
Enter the Merchant password and touch OK.
In the General section, touch Printer Options.
Scroll down to the Merchant header section
Touch Merchant header Value Reset. The Merchant name, Merchant street address, Merchant city province, and Extra receipt fields are cleared.
Touch the Exit icon twice to return to the main screen.

To a delete the receipt footer:

Touch the Action button on the main screen.
Touch Settings.
Enter the Merchant password and touch OK.
In the General section, touch Printer Options.
Scroll down to the Footer section
Touch Footer Value Reset. The Footer Line 1, Footer Line 2, Footer Line 3, and Footer Line 4 are cleared.
Touch the Exit icon twice to return to the main screen.

Reporting

The terminal can print reports, allowing you to view detailed or summary information on the day’s gift card transactions. You can print reports to view information on gift card transactions by employee of for the overall merchant account. Report data comes from the DataCandy server.

The available reports include:

1. Daily detail report by employee: Prints a detailed report of all the day’s gift card transactions, separated by employee.

2. Daily summary report by employee: Prints a summary report of the day’s different types of gift card transactions, separated by employee.

3. Daily summary report by merchant: Prints a summary report of the day’s various types of gift card transactions for the merchant account.


View a Report

Regardless of the report you want to view, the procedure is the same. Viewing the detailed report for the current batch of transactions allows you to see each individual transaction’s details and allows you to reprint or void the transaction if desired.

To view a detailed list of transactions for the current batch:

Touch the Action button on the main screen.
Touch Settings.
Enter the Admin password and touch OK.

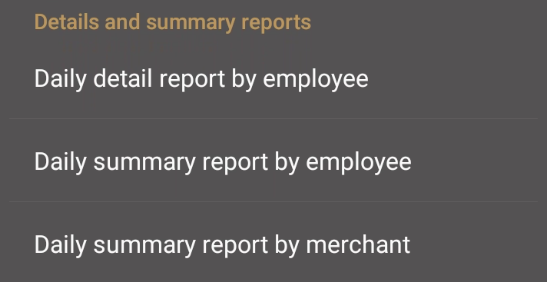

In the Details and summary reports section, touch the report you want to view: Daily detail report by employee, Daily summary report by employee, or Daily summary report by merchant. The selected report appears on the terminal screen.
Touch the Exit icon to return to the main screen.

Change the Administrator Password

Before using the terminal, an Administrator password was assigned during the initial configuration. The Administrator password provides access to advanced terminal functions and can also enable password-protected operations. You can change the Administrator password whenever you feel it necessary.

To change the Administrator password:

Touch the Action button on the main screen.
Touch Settings.
Enter the Admin password and touch OK.
Scroll to the Set passwords section, touch Administrator password.
Enter the current Administrator password and touch OK.
Enter the new, 6-character password in the New Password field and touch OK.

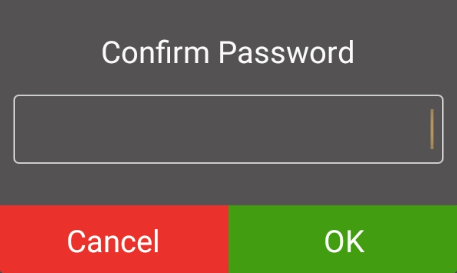

Re-enter the new password in the Confirm Password field and touch OK. If the passwords match, the terminal displays New password saved and returns to the Settings page. If the passwords do not match, the terminal displays Invalid password and returns to the Settings page.
Touch the Exit icon to return to the main screen.

Password Protection for Transasctions

If you use the Gift PayFacto applicatino on the terminal in standalone mode (no POS), you can password protect the Activation and Increment transactions using the administrator password. This security measure prevents the adding of funds or activation of a gift card without the authorisation of a supervisor with the administrator password.

If you are using a terminal that communicates with a POS, the application ignores the administrator password requirement.

To protect transactions with the administrator password:

Touch the Action button on the main screen.
Touch Settings.
Enter the Admin password and touch OK.
Scroll to the Set passwords section, toggle Password on transactions to On.
Touch the Exit icon to return to the main screen.

DataCandy Settings

The DataCandy Settings section of the Settings page are generally configured prior to delivery or as part of the application’s setup process. They should not require modification. If your terminal is having problems communicating with the DataCandy server, you may need to adjust one or more of the fields contained in this section. Refer to the DataCandy email for the values.

The available fields include:

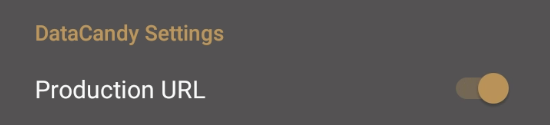

1. Production URL: Touch this toggle switch to On () to enable the terminal to communicate with the DataCandy server. When toggled to Off (), the terminal cannot communicate with the DataCandy server.

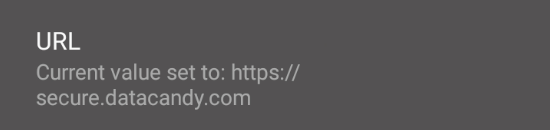

2. URL: The address of the DataCandy server.

3. WSN: The WorkStation Number; a unique value for each terminal.

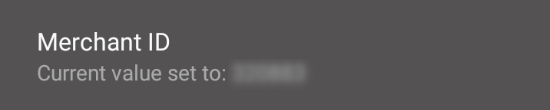

4. Merchant ID: The information in this field should correspond to the Merchant ID sent to you by DataCandy. If the Merchant ID value does not match the one from in the DataCandy email, make the necessary corrections.

5. Merchant password: The information in this field should correspond to the Merchant password sent to you by DataCandy. If the Merchant password value does not match the one from in the DataCandy email, make the necessary corrections.

6. Version: This is a static value that should not be changed; it should always be 2010-01-06.

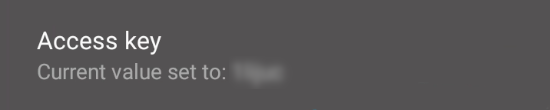

7. Access key: The information in this field should correspond to the Access key sent to you by DataCandy. If the Access key value does not match the one from in the DataCandy email, make the necessary corrections.

8. App Version: This field displays the current version of the Gift PayFacto powered by DataCandy app installed on the terminal; the field is read-only and cannot be modified.


To change DataCandy settings:

Touch the Action button on the main screen.
Touch Settings.
Enter the Admin password and touch OK.
Scroll to the DataCandy Settings section.
Confirm that the Production URL toggle switch is set to On.
Confirm that the URL field is set to https://secure.datacandy.com/. If the value is different, touch the field, enter the correct value, and touch OK.
Confirm that the Merhcant ID field corresponds to the Merchant ID from the DataCandy email. If the value is different, touch the field, enter the correct value, and touch OK.
Confirm that the Merhcant password field corresponds to the Merchant password from the DataCandy email. If the value is different, touch the field, enter the correct value, and touch OK.
Confirm that the Access key field corresponds to the Access key from the DataCandy email. If the value is different, touch the field, enter the correct value, and touch OK.
Touch the Exit icon to return to the main screen.
